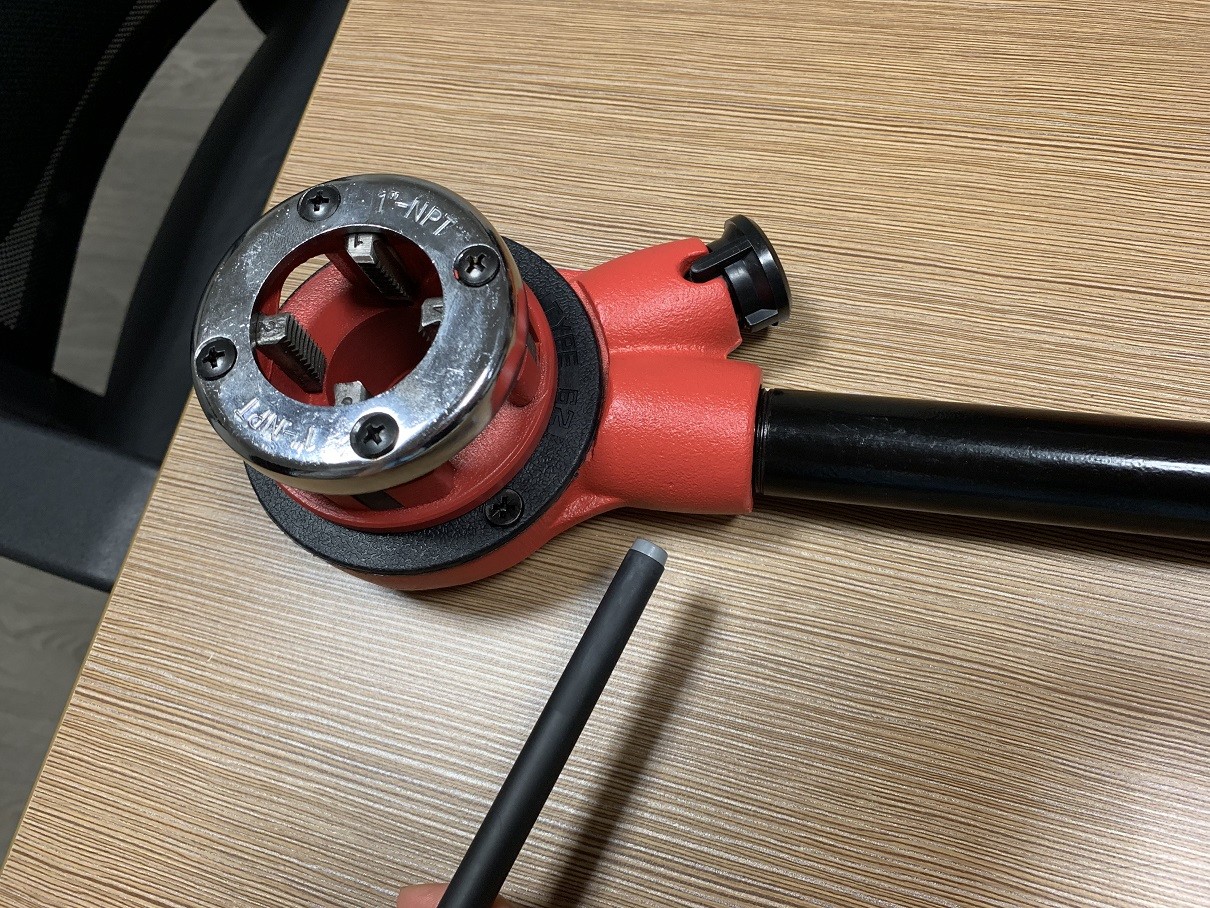

Manual ratchet threader
Model: ST-P62-5
Capacity: 1/4"-1 1/4" (5 pieces kit)
Die: 3/8",1/2", 3/4", 1", 1-1/4" NPT or BSPT either
Package: 4 sets /carton
G.W/N.W.: 23/22KGS
Packing size: wooden case 40.5x37x23cm
Many other size in option
62 series
1/2"-1 1/4" 4pcs die head set
3/8"-1 1/4" 5pcs die head set
1/4"-1 1/4" 6pcs die head set
63 series
1/2"-2" 6pcs die head set
3/8"-2" 7pcs die head set
1/4"-2" 8pcs die head set
12R series
1/2"-2" 6pcs die head set
114 series
2 1/2"-3"
3 1/2"-4"1pc die head set
112 series
1/2"-1 1/4" 1pc die head set
92 series
1/2"-1"3pcs die head set
manual pipe threading machine
manual pipe threaders
62 manual ratchet threader
A pipe threading machine is a tool used to create threads on the
end of a pipe. There are two types of threading machines: electric
and manual. Both types use a die head to cut the threads, but the
way they power the die head is different.
Electric threading machines use an electric motor to rotate the die
head. The motor is connected to a gearbox that reduces the speed
and increases the torque. The gearbox then drives the spindle,
which rotates the die head. The die head is mounted on a carriage
that moves along the length of the pipe. The carriage is controlled
by a hand-held pendant that the operator uses to move the carriage
and start the threading process. Once the die head has cut the
threads, the operator reverses the carriage to remove the die head
from the pipe.
Manual threading machines, on the other hand, use a crank to rotate
the die head. The operator turns the crank by hand, which rotates
the spindle and the die head. The die head is also mounted on a
carriage that moves along the length of the pipe. The operator must
move the carriage by hand and start the threading process manually.
Once the threads are cut, the operator reverses the carriage to
remove the die head.
Regardless of the type of threading machine, the die head is the
most important component. The die head contains several dies that
are shaped like screws. The dies cut the threads into the pipe as
the die head rotates. The dies are held in place by a set of jaws
that are tightened around the pipe. The jaws are also part of the
carriage that moves along the length of the pipe.
In conclusion, a pipe threading machine is a tool used to create
threads on the end of a pipe. It does this by rotating a die head
that contains several dies that cut the threads into the pipe. The
machine can be either electric or manual, but both use a die head
mounted on a carriage that moves along the length of the pipe. The
operator controls the movement of the carriage and starts the
threading process either with a hand-held pendant or manually
turning a crank.
