This hydraulic roll groover equips with updated hydraulic pump, with convenient depth adjusting function, powered by 1100w induction motor, is capable of grooving 2”-12” pipes. Separate knurling roller design of drive shaft for convenient replacement.

1) Popular size – capacity from 2 inch to 12 inch pipe grooving
2) Hot-sale in Egypt
3) Competitive price
4) Standard with pipe stands and all size pinch roller, knurl wheel

Roll Grooving Machine China
Model: STG2A
Capacity: 2″-12″ (60-325mm) Sch40 Steel pipe,
Sch10s Sch5s Sch10 Sch5 thin wall steel pipe
Pipe wall-thickness: : Max.10mm
Speed: 23rpm
G.W.: 158KGS
Packing size: Plywood case 78x70x92cm

Standard Equipment
With 3pcs knurl wheel and 2pcs pinch roll free parts and pipe rest
* For SCH40 steel pipe
Knurl wheel φ60-76
Knurl wheel φ89-168
Knurl wheel φ219-325
Pinch roller φ60-168
Knurl wheel φ219-325
Pipe stand

Optimal Equipment
*For SCH10S SCH5S SCH10 SCH5 thin wall steel pipe
Thin-wall knurl wheel φ60-76
Thin-wall knurl wheel φ89-168
Thin-wall knurl wheel φ219-325

PICTURES FOR ROLL GROOVING MACHINE 2''-12''

1) This machine is designed for grooving 2″-12″ steel pipe
2) Powered by high-performance gear reducing motor contributing to compact size and low noise
3) The unique integral hydraulic pump structure and groove depth limitation device ensure high quality grooves and high working efficiency

OPERATION OF ROLL PIPE GROOVING MACHINE

Choose the right size pinch roller and knurl wheel, install both wheels to the machine and tighten the screw. Rotate the feeding nut clockwise, put the machine on the pipe and fixed with handle.

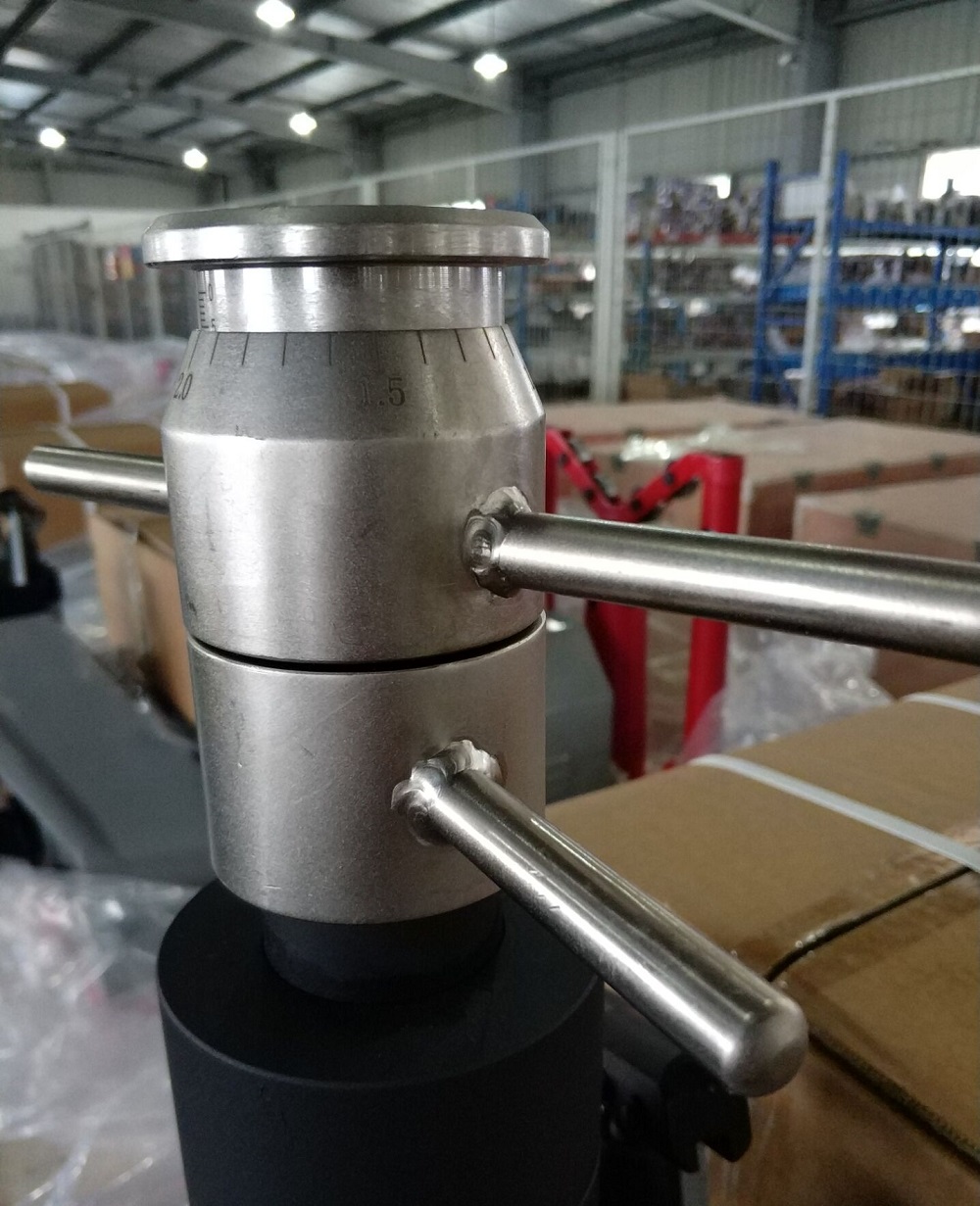

Turn the handle 90 degrees clockwise to rotate feeding nut, take off the handle and insert the drive nut to start grooving. When the machine move one cycle, use the handle to rotate feeding nut again, then repeat this actions. (When the feeding nut turns one cycle, the pinch roller moves 1.5mm, one graduation mark equals to 0.05mm) Rotate feeding nut counter clockwise to take off the machine. Check the pipe with pai ruler. If the groove depth is not in place, fix the machine on the pipe and repeat above actions again until the groove depth is correct.

FAQ

1. WHO ARE WE?
We are professional pipe machine manufacturer located in Hangzhou city of China starts from 1989, we are close to Port Shanghai, Ningbo as well as Yiwu. We mainly export to North and South America, South Asia and the Middle East countries. Our client are power tools wholesaler and comnpany for specific constrution project such as fire fighting pipeline building etc.
2. HOW CAN WE GUARANTEE THE QUALITY?
We always test at least one pipe on every pipe machine before we ship out.
Some of our heavy duty models works well after even 7 or 8 years according to our client feedback, for all of our machine we offer 12 month warranty.
3. WHAT CAN YOU BUY FROM US?
All kind of pipe tools and plumbing tools, such as pipe threading machine, pipe grooving machine, pipe cutting machine, pipe hole cutter, manual pipe bender, pipe vice as well as the test pump.
4. WHY SHOULD YOU BUY FROM US NOT FROM OTHER SUPPLIERS?
We focus on quality piping tools, machinery and service. We have almost all kind of pipe tools, place order to us we can mix different models in one shipment. Language available:English,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
5. HOW LONG IS THE LEADTIME?
Since the voltage of machine motors are customized, usually the lead time will be 10-35 days after payment.
6. HOW CAN YOU PLACE ORDER?
We accept T/T payment directly to our company account and we can also create order on the online shop site that you can pay to us by credit card.
7. HOW TO SHIP?
We ship by sea to port for bulk order and we also ship to door for small shipment.
8. WHAT IS THE MOQ?
Basically there is no MOQ required for our machines, we can ship any quantity but it is highly recommened to make order amount not less than USD2000.00, because according to our experience if the order are too small amount the sea shipping adding tarrif makes it not cost-effective to buy oversea.
9. IS OEM ACCEPTABLE?
Yes. For bulk order we can make nameplate and customized packaging in client’s brand.

Suntech Machinery is a professional company of pipe machine for more than 20 years, Mainly for Pipe Threading Machine, Pipe Cutting Machine, Roll grooving machine, HDPE Butt Fusion Welding Machine, Socket Welding Machine and Relate Manual Tools. We are located in Hangzhou city of China.
From metal pipes to plastic pipes, we offer a wide variety of plumbing tools for on-site working. Our machines have already been exported to many countries and are widely known for its durability and quality. We also offer customization as per the specifications detailed by our clients to fulfill their needs and requirements. We are looking forward to enjoy sincerely cooperation with more and more friends over the world.
