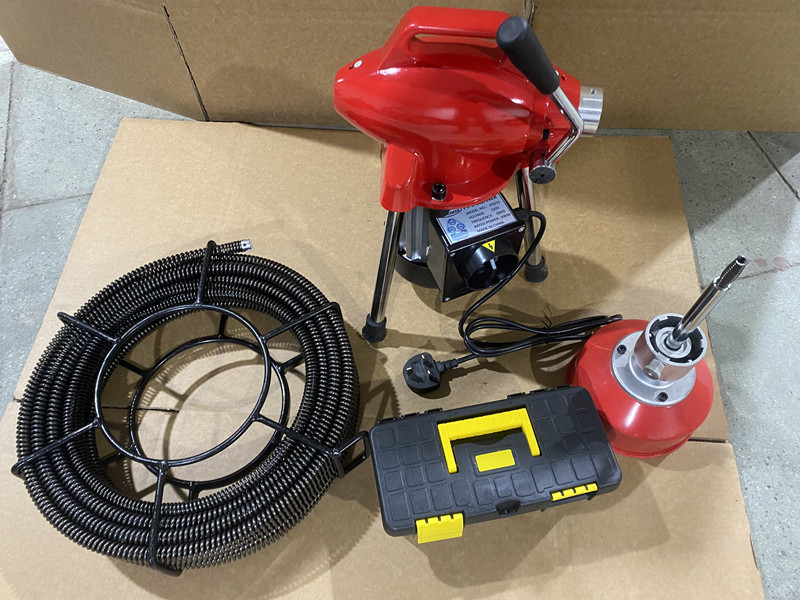

Drain cleaning machine 3/4"-4" (20-100mm)
● This machine is for 3/4"-4"(20-100mm) pipe. Compact, versatile,
professional machine.
● Light weight, strong, convenient flexible in operation, using
cable of φ8mm(5/16") and φ16mm(5/8") .
● Cable of φ8mm(5/16") are used to clean pipes of φ20-75mm,
especially applicable to complex pipe of small diameter like traps.
● Flexible cable of φ16mm(5/8") are used to clean small complex.
● Using sectional helical flexible cable of φ16mm(5/8"), pipe of
φ32-10(1 1/4"-4") can cleaned, the cable can be lengthened at will.
| Product name | Drain cleaning machine 3/4"-4" (20-100mm) |
| Model number | STD75B |
| Capacity | Diameter of pipe 3/4"-4" (20-100mm) |
| Frame | Aluminum frame |
| Power | Input 570w, output 300W |
| Max.working length | 30m |
| Weight | 29/25kgs |
| Packing size | 50*44*50cm
|
Accessories:
Cable combination: 8mm x 5m
Drill heads: 8pcs
Key
Other size in option
We have drain cleaner with 16mm, 22mm, 30mm cables
Operation Instructions
Insert the flexible shaft into the tail of the main machine first,
reasonably select cutter head and fit in flexible shaft according
to different obstructions, put the flexible shaft into the
pipeline, start switch of power source when reach obstructions,
press clutch handle to make flexible shaft rapidly rotate to mash
the obstructions. If the pipeline is still dredged, let the clutch
free and push the flexible shaft deeper in pipeline continually,
operate repeatedly up to dredging of pipe. When dredge the pipeline
with water, please use the suitable shaft, connect the roller at
the tail of the machine and pull out the shaft according to the
length to be used.
Machine Storage
Motor-driven equipment must be kept indoors or well covered in
rainy weather. Store the machine in a locked area that is out of
reach of children and people unfamiliar with drain cleaners. This
machine can cause serious injury in the hands of untrained users.
If machine has been exposed to freezing weather, unit must be run
for ten (10) to twenty (20) minutes without load to warm up.
Failing to do this will result in frozen bearings. If machine is
exposed to weather for a period of time, moisture will form across
motor windings causing motor to burn out.
It is applicable to remove various blockages of pipelines, it suits
for households, factory, civil engineering units, etc. This kind of
machine is used to clean various debris, creams, chemical deposits,
house-hold wastes ,etc .which are blocked in pipelines.
