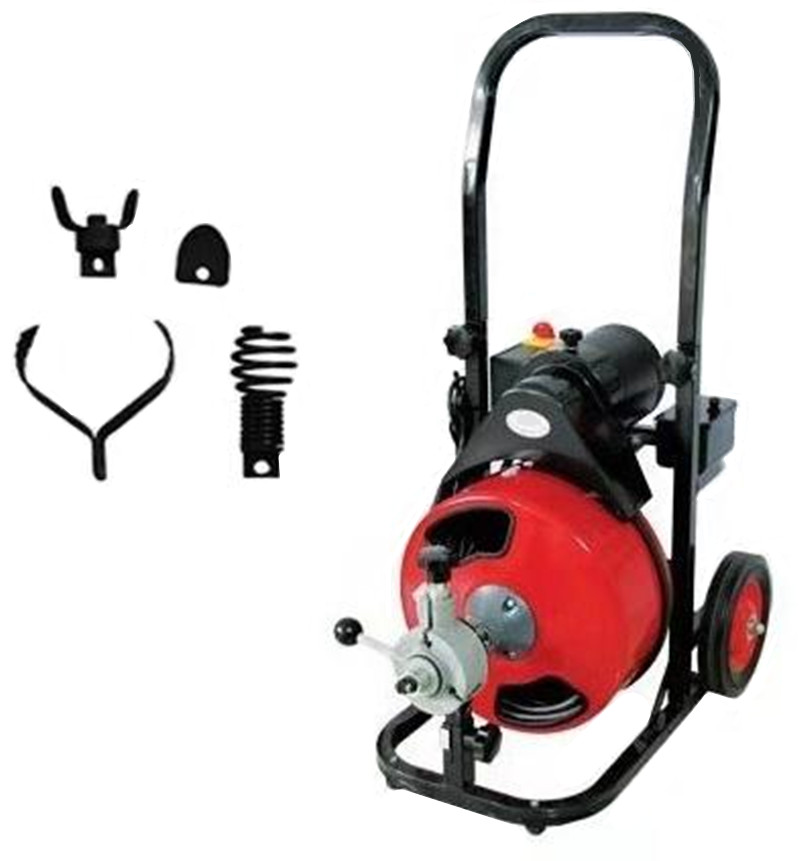

Drain cleaning machine 3/4"-8" (20-200mm)
● This machine is for 1 1/4"-4"(32-100mm) drain lines. Compact,
versatile, professional machine.
● Unique, easy to use, instant-acting cable clutch maximizes
operator control Pull handle down and cable spins at 400RPM.
● Release handle, cable stops instantly.
Specifications
Capacity: 11/4"-4" (Φ32-Φ100mm)
Motor: 250W
Speed: 300rpm
G.W./N.W.: 35/30kgs
Packing: 490*380*620mm
Standard with cable φ12.7mm 15m
Drain pipe cleaning machine Selling feature
Driver lever can be locked in stop position, very robust,
and also serves as carrying handle for the machine.
Clamping device for secure extending / retrieving of the cable
Die-cast aluminum frame, distortion-resistant and extremely light.
Approved by CE.
Other size in option
We have drain cleaner with 16mm, 22mm, 30mm cables
Maintenance Instructions
WARNING
Make sure machine is unplugged from power source before performing
maintenance or making any adjustment.
Lubrication
Lubricate machine with grease at grease fitting (located on jaw
housing) once a week if used every day; once a month if used less.
Place a drop of oil on each of the bearing points, thrust bearing,
clutch jaws, etc., at least once a year.
Cables
Cables should be thoroughly flushed with water to prevent damaging
effects of sediment and drain cleaning compounds.
Periodically lubricate cables and couplings.
When not in use, store cables indoors to prevent deterioration by
the elements.
Cables should be replaced when they become severely corroded or
worn. A worn cable can be identified when outside of coils become
flat.
Machine Storage
Motor-driven equipment must be kept indoors or well covered in
rainy weather. Store the machine in a locked area that is out of
reach of children and people unfamiliar with drain cleaners. This
machine can cause serious injury in the hands of untrained users.
If machine has been exposed to freezing weather, unit must be run
for ten (10) to twenty (20) minutes without load to warm up.
Failing to do this will result in frozen bearings. If machine is
exposed to weather for a period of time, moisture will form across
motor windings causing motor to burn out.
It is applicable to remove various blockages of pipelines, it suits
for households, factory, civil engineering units, etc. This kind of
machine is used to clean various debris, creams, chemical deposits,
house-hold wastes ,etc .which are blocked in pipelines.
